More Recordings from March 15: Approximately Three Hours of Kent-like Calls and Analysis – Part 1

On March 15, Phil Vanbergen and Matt Courtman recorded numerous kent-like calls at the same location where we heard several calls on March 11 and 12. Phil was able to record two of the March 11 calls. That capture is included in the post, along with Phil’s audio from the morning of the 15th. I heard two of the calls on the 11th; the second one in particular struck me as being consistent with the Singer Tract recordings; the first seemed a little low pitched to my ears, an observation that’s captured on the recording. Steve Pagans and I heard several calls on the 12th, but these were not recorded.

Matt obtained nearly three hours of audio, and to my ears the sounds are coming from 2-4 distinct sources; I had the same impression after listening to some of Phil’s clips. I have now listened all the way through Matt’s recordings several times and will share my analysis below. Matt and Phil are likely to weigh in later with their perspectives. I also have a couple of trip reports pending, so there should be a lot of activity on the blog in coming weeks.

To start with, I counted over 200 kent-like calls in all.

On the long clips posted here, I’ve edited out all of Matt’s ADK (anthropogenic double knock) series, which he did on the half hour. The knocks are very loud, as can be heard from the one trailing sound I’ve left in. I also snipped out several minutes of conversation between Phil and Matt. The ADKs seem to have led to more frequent calling and may have provoked some double knocks, something we may address in a future post.

Edited to add: On further review, there does not appear be a correlation between ADKs and more frequent calling. Clips like the one posted below can be deceptive. One kent-like call that overlaps with a knock has been deleted. There is also one possible knock in response. Caution, ADKs have not been completely spliced out, and they are loud. See bottom of page for brief clip and sonogram.*

Between 6:12 and 6:25 on the last long recording made that morning, there are five calls of differing durations and volumes, followed by what may be a double knock. Similarly, at the end of the full clip, starting at 14:14, 3 calls are bracketed by some potentially interesting knocks, 2 before and 1 or 2 after.

The first four clips below are shorter, amplified extracts on which the calls can be heard easily.

The first two of these are extracted from the final segment described above and include the interesting, tooting sounds and possible knocks.

The third clip includes multiple calls over 2 minutes and nine seconds, along with a wide variety of other sounds.

The fourth is four minutes long (pardon the airplane noise) and should provide additional context while also revealing some of the variations among the calls.

For those, like me, who don’t have professional sonogram software, I recommend using Sonic Visualizer – an easy to use, free program that enables you to watch the sonogram as you listen.

And for those who are unfamiliar with avian bioacoustics, this is a great place to start. I’m on a very steep learning curve myself and am prepared to stand corrected about any misstatements in this post.

Many of the sounds are audible on built-in computer speakers, but playback through headphones, earbuds, or external speakers is highly recommended.



I think these calls were likely made by Ivory-billed Woodpeckers. My perspective is based in part on the fact that I have spent all or part of nearly 40 days in close proximity to where the calls were recorded, starting in 2014. A considerable amount of this time was spent sitting quietly, and the total person hours spent in the area is well into the hundreds. We have had occasional kent-like calls, possible double knocks, and possible sightings over the years, but nothing approaching what transpired on the 15th.

Matt spent the morning of the 16th in the same location and did not hear any of the sounds, and Patricia and I spent 4 mornings and one afternoon there between the 23rd and 31st and heard no similar calls. I think this militates strongly against the idea that the source of the sounds is a common resident of the area.

Three alternative hypotheses have been suggested.

On the morning of the 15th, Phil proposed that the sounds might be tree squeaks. There appear to be multiple tree squeaks on the recording, some with similar pitches, but they bear little resemblance to the kent-like calls on the sonogram or to the ear. In addition, the calls sometimes come singly, sometimes in groups, and they vary in pitch, volume, and duration and seem to occur independent of wind velocity (on the 11th we noted that there was no wind.)

Screen Shot 2017-04-04 at 9.29.13 AM

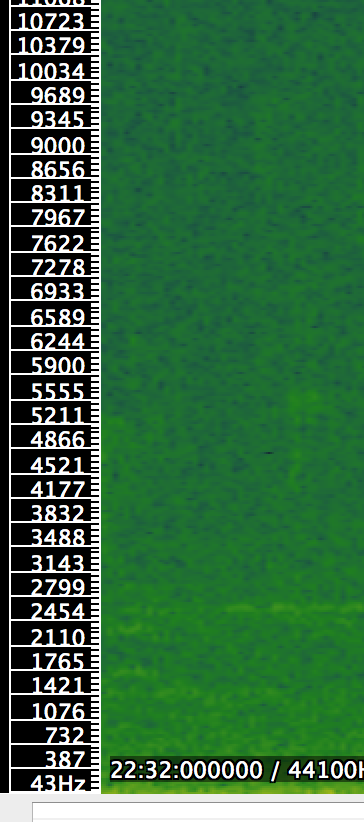

Sonogram of first clip, showing apparent tree squeaks before and and immediately after two kent-like calls – the stacked horizontal lines right of center.

The first sound, at just after 4 seconds on the second clip, seems ambiguous. The sonogram is somewhat similar to the kent-like sounds, but the duration is very short, and it has a creaky quality. It’s also associated with the two creaky sounds that follow. These can be heard frequently over the course of the morning, and their appearance on the sonogram is nearly uniform.

Screen Shot 2017-04-07 at 7.51.16 AM

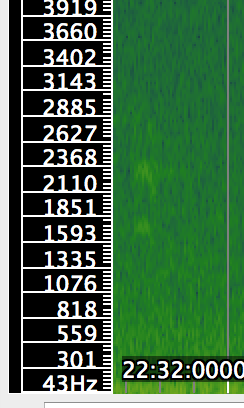

Sonogram of second clip showing tree squeaks.

One reviewer proposed Wild Turkey and Blue Jay as possible sources. I think turkey can be ruled out due to the absence of other turkey-like sounds associated with these very persistent calls.

Blue Jay strikes me as a more plausible alternative. Blue Jays can be heard at numerous times on Matt’s recordings. And Blue Jays are known to make kent-like calls, some of them very similar to known Ivory-billed Woodpecker sounds. This is likely not mimicry, since the most similar recorded calls I know of were obtained in upstate New York. The recordist noted the similarity. On the sonogram, the resemblance between these calls and either known Ivory-billed Woodpecker sounds or Matt’s recording is not as strong as it might seem to the ear. While they share a strong second partial, the Blue Jay fundamental is higher and some of the higher partials are considerably stronger.

Screen Shot 2017-04-02 at 7.03.13 AM

Kent-like, suspected Ivory-billed Woodpecker calls recorded by Matt Courtman on March 15, 2017. Note the relatively strong base frequency and 2nd partial, and weak 1st, 3rd, 4th, and 5ths.

Screen Shot 2017-04-04 at 11.05.39 AM

Kent-like Blue Jay calls. Note the relatively weak fundamental and strong first four partials.

It’s also important to note that on the Cornell Blue Jay recording, the kent-like calls are intermixed with typical Blue Jay vocalizations. Over the three hours of Matt’s recording, kent-like calls occur during periods when Blue Jays are vocalizing and during periods when Blue Jays are silent.

Some of the kent-like calls have harmonics consistent with Cornell’s recorded playbacks of Singer Tract calls at 145 meters. Many are lower in pitch. Most have a considerably longer duration, although to my untrained eye/ear, some seem close to the 80-100 ms duration on the Cornell recording. More on duration below.

On March 28, I did some playback of Singer Tract calls using an iPhone and a bluetooth speaker. Patricia recorded them on a Roland Edirol R09HR digital recorder. I’m including the recording and the sonogram for comparison. Like Matt’s recordings, the second partial is strong throughout, and the 1st, 3rd, and 4th appear to be weaker than for the Blue Jay shown above.

Screen Shot 2017-04-06 at 12.30.00 PM

At various points, Phil also experimented with doing playback, using calls recorded in 2010 at the old Project Coyote site. (He also played back several other species – Red-bellied, Golden-fronted, and, possibly, Gila Woodpecker to gauge Red-bellied response, and Eastern Towhee out of personal interest.) Examples of putative ivorybill playbacks can be heard over the first 3 minutes of the fourth long clip posted above and also during the first part of the fifth. These sounds are longer but similar in tonal quality to the lower pitched calls. Their harmonic structure is different, however, with a fundamental at around 800 hz, a first partial at around 1600, and a fairly strong higher partial at approximately 5000 hz., and should be readily identifiable on the sonogram.

Screen Shot 2017-04-04 at 2.15.09 PM

Higher pitched playback calls, at middle left and far right.

Phil’s playbacks do not seem to have provoked any kent-like replies. Blue Jays can be heard during the same time frame, but it’s not immediately apparent whether the recorded Blue Jay calls are responses or merely contemporaneous vocalizations. This segment includes some Blue Jay vocalizations.

With regard to Blue Jays and the numerous kent like calls heard from March 11, 12, and 15: to reiterate, many hours have been spent in this vicinity, with close attention being paid to kent-like sounds. These are heard infrequently and never before in such quantity or over such an extended period. If Blue Jays in the area were making these sounds, we almost certainly would have heard and recorded many of them over the years. In addition, both Steve Pagans and Matt Courtman are experienced and skilled ear birders and neither thinks these are Blue Jay calls.

It’s also worth pointing out that another potential confusion call can be heard on the recordings – White-breasted Nuthatch. The sound is similar but much weaker, as should be clear from the amplified March 15 excerpt. On the sonogram, just below the amplified recording, the calls show up very faintly, with dominant frequencies of around 2200-2400 hz and a relatively strong partial at 1700-1800.





I encourage people to listen through and draw their own conclusions. Input from those with expertise is welcome.

While I can’t say if any of these calls are a perfect match for the Allen and Kellogg recordings (some may be), many of them are close on the sonogram and similar to the ear. It’s important to bear in mind that the Singer Tract birds were likely agitated when those recordings were made, even though Tanner described some them as being good examples of kents. It’s also important to read Tanner’s descriptions carefully, though as is so often the case, his writing can be opaque. Perhaps his most important observation was that “all of the notes have the same nasal, trumpet-like quality.”

According to Tanner, “The notes of the nuthatches are the only bird calls I know that sound like the voice of an ivorybill; the Ivory-bill’s calls are much longer and pitched higher than the calls of a White-breasted Nuthatch, are more in the range of a Red-breasted Nuthatch.” (Emphasis added.) By contrast, Hasbrouck, writing in the 1890’s, described it as being “exactly like the note of the White-breasted Nuthatch” only much louder and stronger.

Tanner’s reference to Red-breasted Nuthatches has always confused me. I’m very much in Hasbrouck’s camp; I think the Singer Tract kents sound far more akin to White-breasted than Red-breasted Nuthatch. Either way, most of the Allen and Kellogg kents are lower pitched than typical White-breasted Nuthatch calls, as are the ones on Matt’s recording. In addition, the Allen and Kellogg kents seem to be of similar in duration to typical nuthatch calls, rather than longer or “much longer”. This too suggests that they are not typical but are more rapid and perhaps higher pitched due to agitation. Tanner wrote further, “[t]he kent note, given in monotone or infrequently, is the ordinary call note. When the bird is disturbed, the pitch of the kent rises, and it is repeated more rapidly, frequently doubled, kent-kent, with the second note lower. The prolonged and slurring, kient-kient-kient call I always heard when two or more birds were together.” This call was never recorded.

According to Allen and Kellogg, “kenting varied a great deal” and a male bird called “loudly and deliberately”, again suggesting that many calls were of longer duration than those on the recording. Tanner’s notes also point to this variability. At one point, he wrote of “1 and 2 syllable yaps”; he has the Mack’s Bayou bird (whose voice he claimed he could recognize) making a “kient-kient” and also transliterated calls with “keent keent” and “yeenh yeenh” (Bales). These renderings all suggest a more drawn out call than those on the Allen and Kellogg recordings. George Miksch Sutton described the Singer Tract birds’ calls as, “strange, bleat like, not quite sharp enough for a woodpecker’s cry. It was slightly nasal in quality and it sounded to me like ‘Gip!’, with a hard g“. Sutton’s description also suggests that many kents had a fairly long duration.

Edited to add: similarly, several observers (Audubon, Beyer, Hoyt)  described ivorybill calls as “plaintive”; this too seems to imply calls of longer duration than what’s heard on the Singer Tract recordings.

Given the resemblance to the Singer Tract recordings and the lack of plausible alternatives, I posit that these calls are at worst highly suggestive of Ivory-billed Woodpecker.

*Possible knock and kent-like calls temporally associated with ADK series. Caution remnant ADKs are loud.

Screen Shot 2017-04-09 at 7.37.53 AM

Advertisements

2 Comments on “More Recordings from March 15: Approximately Three Hours of Kent-like Calls and Analysis – Part 1”

  1. Incredible evidence and observations from the last couple posts with the bark scaling, possible wake feeding, and kent calls. I really enjoy the thorough analysis. How far do you suspect the source of the noises were from where they were recorded? Was there any attempt to approach them or do you have a strategy with attempting to get a visual when you’re hearing noises such as these?

  2. Thanks. The strategy was to remain in place. The nature of the location is such that a stealthy approach would have been impossible. Though Tanner found birds by “going to the sound”, those birds were somewhat habituated to human presence, so I have my doubts about attempts to approach. My impression in the field was that the sounds were fairly close, perhaps 100 yards away. On listening to the recordings I think the distance was somewhat greater. Matt and Phil may have different ideas.
